The Aggregate History Dashboard allows you to display aggregated values over time using days, weeks, months, or years. This dashboard can be used for both Individual and Group layouts and supports calculations such as averages, sums, minimums, maximums, latest values, and oldest values.

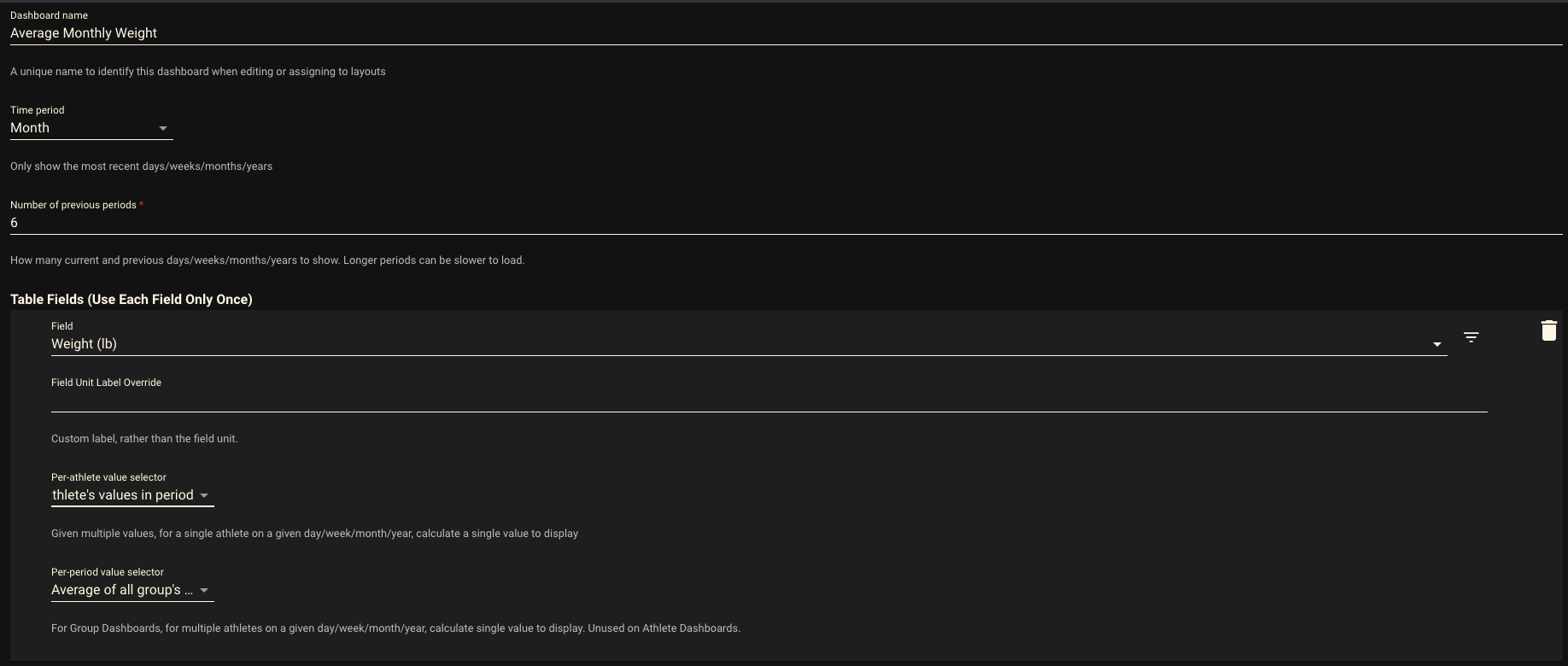

Builder Screen and Options
1. Dashboard Name
Enter a unique name for your dashboard. This is the name that will appear when selecting the dashboard for a layout.
2. Time Period
Select the period used to aggregate your data. Available options include:
- Day
- Week (Sunday–Saturday)
- Week (Monday–Sunday)
- Month
- Year
The selected period determines how values are grouped on the chart. For example, selecting "Month" will combine all values within each month into a single plotted value.
3. Number of Previous Periods
Choose how many periods to display on the chart.
Examples:
- 7 Days
- 4 Weeks
- 6 Months
- 3 Years
Increasing the number of periods displayed may result in longer loading times.
4. Field
Select the field you wish to visualize.
You may optionally:
- Override the field label
- Override the displayed unit
- Add multiple fields to compare metrics on the same dashboard
Each field can only be added once per dashboard.
5. Per-Athlete Value Selector
When multiple values exist for an athlete within a single time period, this setting determines which value is used.
Available options include:
- Sum
- Average
- Minimum
- Maximum
- Latest
- Oldest
Example:
If an athlete records body weight ten times during a month:
- Average = Average weight for the month
- Maximum = Highest recorded weight
- Latest = Most recent weight entered that month
This setting is especially important when using weekly, monthly, or yearly aggregations.
6. Per-Period Value Selector (Group Dashboards Only)
For Group Dashboards, once an individual value has been calculated for each athlete, this setting determines how those athlete values are combined into a single group value.
Available options include:
- Sum
- Average
- Minimum
- Maximum
- Latest
- Oldest
Example:
If displaying monthly body weight averages for a team:
- Per-Athlete Value Selector = Average
- Per-Period Value Selector = Average
The dashboard would display the team's average monthly body weight.
